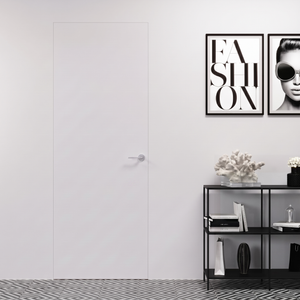

Flush-to-the-wall Door Invisible White (Easy Wall)

Wall Flush Door with Magnetic Lock for Masonry or Plasterboard Easy Wall

The invisible door Raso Wall is the perfect solution to merge the door and the environment into a single entity. This product is designed to be installed easily and quickly on plastered or plasterboard walls. It is suitable for existing floors or to be built, making it ideal for renovation work.

The Raso Wall stands out as a door without architraves , earning it the name of invisible door. Our model, Filo Muro EasyWall , is equipped with a white extruded aluminum frame, sturdy and suitable for walling, which gives it a modern and minimalist design.

• Easy Installation : Suitable for plastered or drywall walls, existing or new floors.
• Modern Design : White extruded aluminum frame for a minimalist look.
• Accessories Included : Ready-to-install white door panel, concealed hinges and magnetic lock.

Discover how the Raso Wall Invisible Door can transform your environment, offering a refined design and unparalleled functionality. It is also possible to have it with a soundproof panel.

Technical Features of the Raso Wall Door

Make your dream come true... imagine a house without edges, skirting boards and protruding doors; a house full of light and personality with Filo Muro Doors .

Thanks to the invisible concealed hinges and the strong thickness of the jamb of the invisible aluminum doors, it is possible to integrate them into the wall with perfect minimalism. This Raso Wall door develops its own originality and uniqueness: minimalism, brightness, lightness.

1. Frame Core

   • Made of passivated extruded aluminium (EN AW 6060 alloy - Anticorodal 063).
   • Replaces the box (jamb) with a Kevlar plaster-supporting mesh.
   • Prevents the appearance of unsightly cracks between the wall and the invisible door.

2. Panel

   • White panel with honeycomb structure, total thickness 44 mm.
   • Perimeter frame in solid wood, covered with 2 sheets of sanded MDF in Class 1 and with low formaldehyde emissions.

3. Sealing gasket

   • Made of soft rubber for silent closing.

4. Hinges

   • 3D adjustable white hinges on three axes (height, width, depth).
   • Tested for 200,000 cycles.

5. Lock

   • Standard magnetic lock with white finish (also available with latch hole and cylinder hole).
   • Options on request: key hole lock, cylinder hole, latch hole, roller lock, panic lock, lock with electric strike, safety lock with electric or mechanical strike.

Discover the different solutions for invisible interior doors and transform your environment with style and functionality.

How to take measurements for the Flush Door?

Flush doors require the installation of their own subframe, specifically designed to avoid the subsequent assembly of jambs and architraves, components that are generally made of wood or the same essence as the door and act as a frame. To correctly take measurements for internal doors, follow these steps. The necessary measurements include the width, height and thickness of the wall.

Steps:

1. Measure the Width:
1. Measure the width of the wall opening (wall hole) from one side to the other.
2. Measure Height:
1. Measure the height of the wall opening from the floor to the top.
3. Communicate Wall Type:
1. Masonry (Plaster)
2. Plasterboard

Measurement Conversion Table (cm):

Practical Example:

• Door Dimensions with Frame: 80 x 215
• Wall Hole: 81 x 216 cm
• Door: 70 x 210 cm

Taking the correct measurements for interior doors is essential for a perfect installation. Follow these simple steps and use our conversion table to ensure your new interior doors fit perfectly in your space.

Choose our interior doors for a combination of quality, durability and ease of installation. Contact us for more information or a personalized quote!
