Vertical Pivot Door

Flap door

Flap doorCONTACT The Flap Door Expert

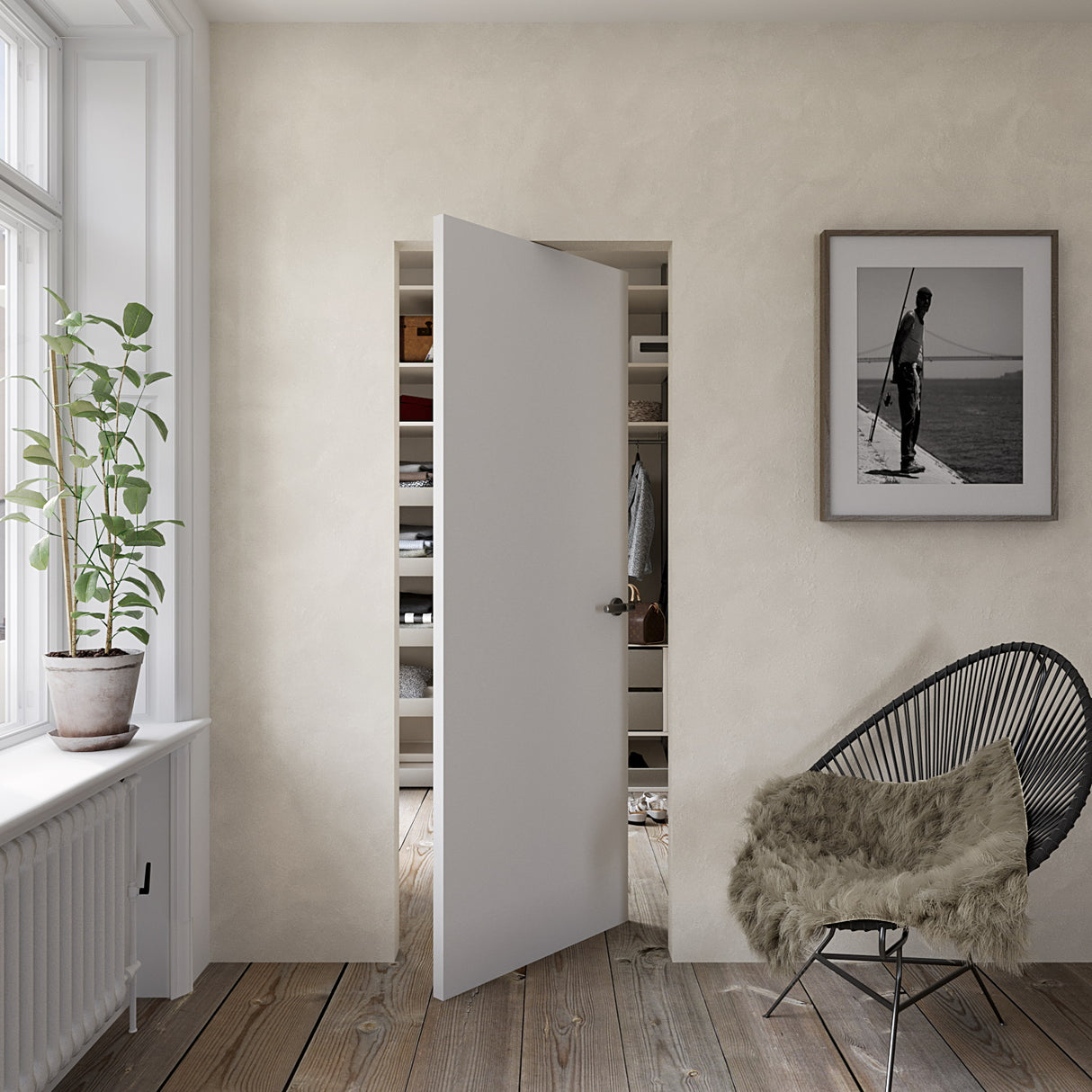

Vertical Flap 5 or linvisibile is the ideal counterframe for merging door and environment into one. This door was created to be installed easily and quickly on masonry or plasterboard walls, it can be applied to existing floors or to be built and ideal for renovation works. Our American flap door also has a very robust aluminum structure and a modern and minimalist design. The flap door is shipped ready to paint, the vertical flap hinges are concealed and the lock is magnetic.

Technical characteristics of the flap doors

	The Vertical flap frame is in passivated extruded aluminum (alloy EN AW 6060- Anticorodal 063) which replaces the box (upholstery-jamb). Including top retractable steel hinge.
.
	Kevlar plaster net , prevents the onset (even after years) of unsightly cracks between the wall and the flap doors..
.
	Panel with honeycomb structure made with perimeter frame in solid wood and SOUNDPROOFING with high density polyestyrene inside covered with 2 sheets of Class 1 smoothed MDF with low formaldehyde emission. Soft rubber stop gasket (pre-installed), which makes closing soft and silent..
.
	MAGNETIC LOCK as standard, on request we can apply the INVISIBLE total concealed magnetic lock
.
	The hinges The innovative hinges for flap doors .... the highest quality on adjustable bearing, for flap height we can make any measure.
.
	Vertical flap door or American flap door painted like the wall
.
	Flush-to-wall flap door with external covering with wallpaper.
	360° Flap door with flap height cm. 240 painted like the wall
Vertical flap door options Options ... of vertical flap doors
	Invisible lock on flap door - perfect flatness without any protrusions.
.
	ELECTRIC invisible lock on flap door with applied mirror. A touch of class.
.
	Electric strike low voltage for invisible operation!
.
Dimensions and section of Vertical Flap doors
	Section flap height
.
	Flap section width
SLIM handles
	Flap RASO HANDLE version with handle only
.
	Flap door with handle RASO handle and key version
.
	RASO HANDLE key only version
.
	Flap doors with handle RASO handle and pawl version
.
	FLAP DOORS with RASO handle, pawl only version
.

How to take measurements for the Hinged Door?

To properly measure interior doors, follow these steps. The measurements you need include the width, height, and thickness of the wall.

Steps:

1. Measure the Width:
1. Measure the width of the wall opening (wall hole) from one side to the other.
2. Measure the Height:
1. Measure the height of the wall opening from the floor to the top.
3. Measure the Wall Thickness:
1. Measure the thickness of the wall on both sides of the opening.

Measurement Conversion Table (cm):

Practical Example:

• Dimensions Door with Frame: 78 x 213.5 x 11-13.5 cm
• Wall Hole: 80 x 215 cm
• Door: 70 x 210 cm

Taking the correct measurements for interior doors is essential for a perfect installation. Follow these simple steps and use our conversion table to ensure your new interior doors fit perfectly in your space.

Choose our interior doors for a combination of quality, durability and ease of installation. Contact us for more information or a personalized quote!
