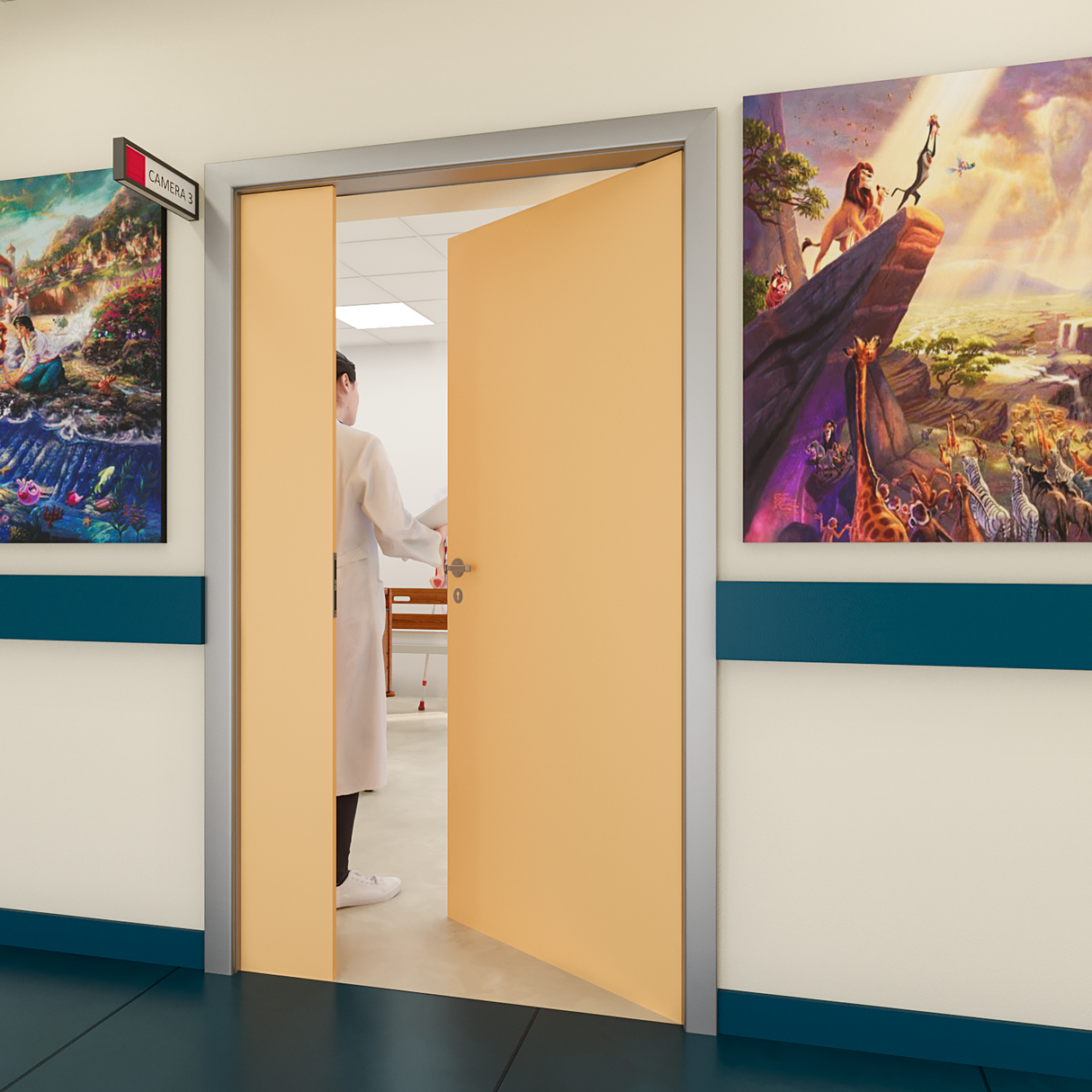

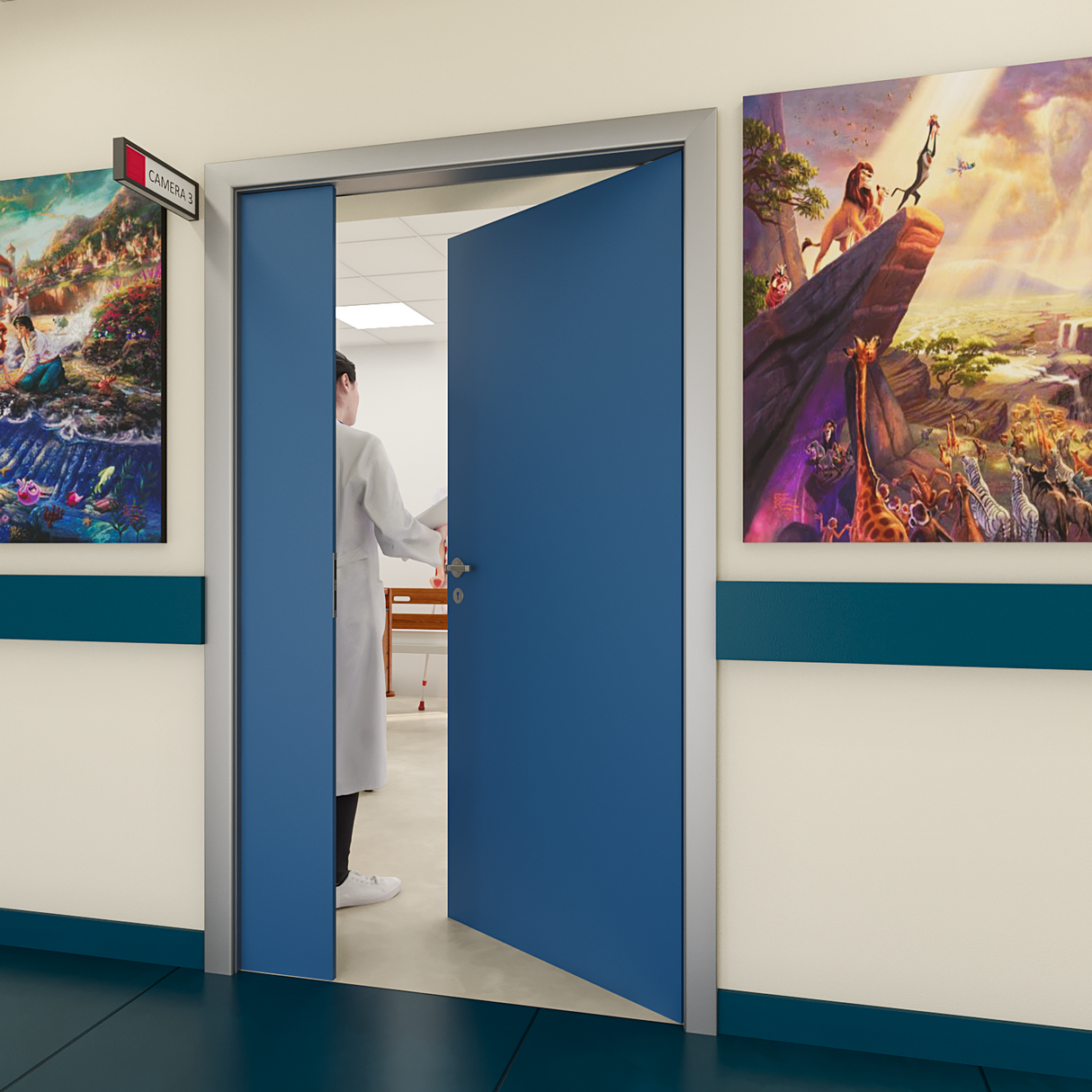

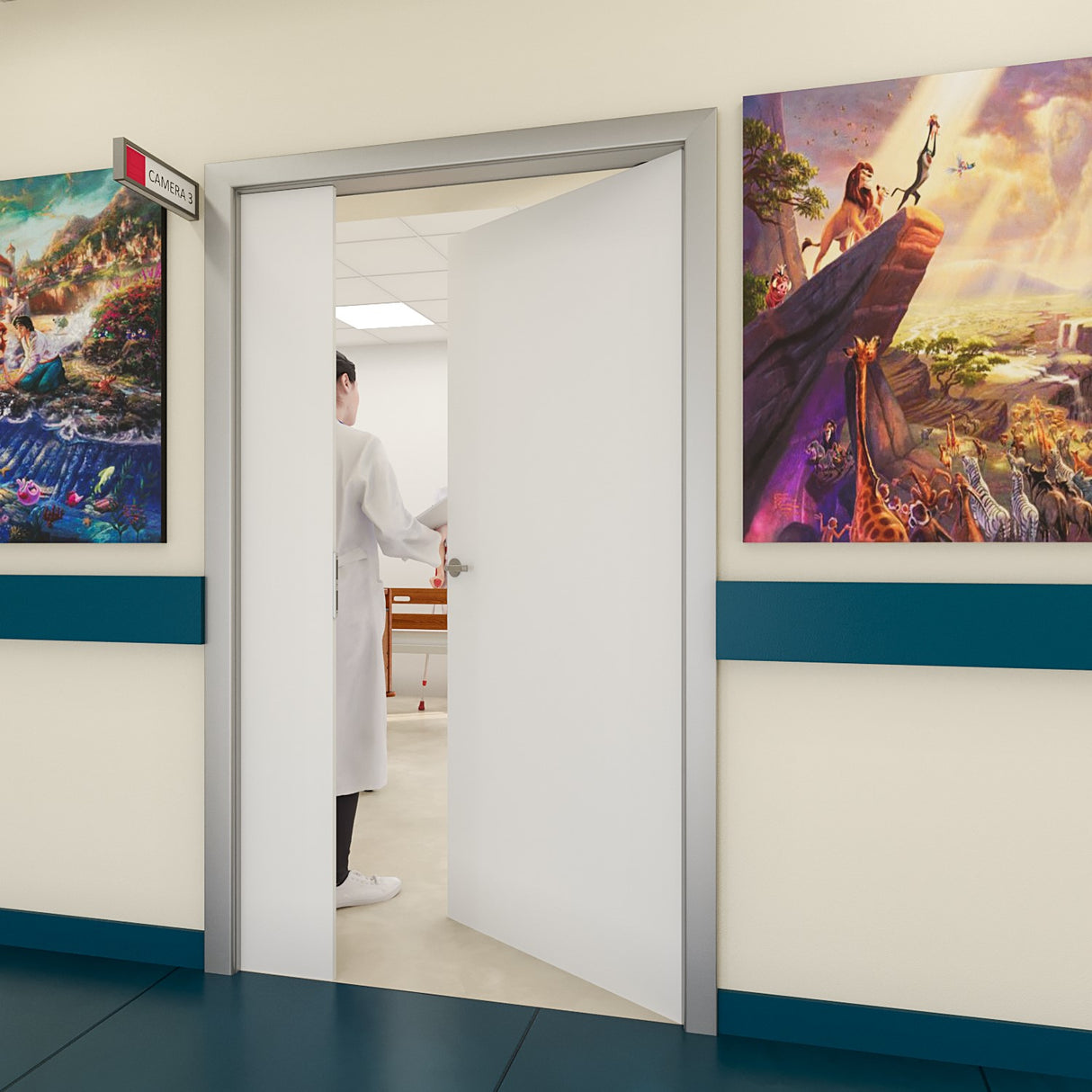

Plastic Laminate Hinged Door and Aluminum Frame 2 Doors

Technical Door for Hospitals and Communities with Abet Print Laminate and Straight Aluminum Frame

Our technical doors are designed for public facilities such as hospitals, schools and offices. Made with extruded aluminum frame and Abet Print laminate, they offer maximum safety, hygiene and durability. Available with one or two doors, these doors are ideal for environments that require tranquility and resistance.

Extruded Aluminum Frame:

• Door Frame Section: Extruded aluminum without sharp edges, with anodized surface for easy cleaning and hygiene.
• Door jambs: Profiles in 6060 EN573-3 aluminium alloy, thickness 15/10, with telescopic joint.
• Telescopic Cover Trims: Made of extruded aluminum.

Door Panel:

• Perimeter Frame: Made of dried fir wood with lock reinforcements on both sides.
• Honeycomb: Made of resin-coated cardboard with 22 mm cells.
• Covering: In MDF and plastic laminate, 9/10 thickness, resistant to scratches, solvents and abrasions.
• Total Panel Thickness: 44/45 mm.
• Available in Antibacterial Laminate: On request.

Gasket:

• Material: Rubber compliant with UNI 9122 standards.

Hinges:

• Type: Retractable in aluminium, opening 180° and self-lubricating.
• Adjustable: 3D on three axes, with no visible fixing screws.

Additional Options:

• Aluminum edging: Available upon request.
• FSC Certification: Available upon request.
• Sealing Gasket: For silent and draft-proof closing.
• Ventilation grilles: In aluminium (sizes: 30x10, 40x10, 50x10).
• Antibacterial Handle: With silver ions, reduces the proliferation of germs by up to 99%.

Laminate Colors:

• Ready for Delivery: White and Ivory.
• Available on request: Other colours, antibacterial version and class 1.

Technical Doors for Communities: Our technical doors in 9/10 mm Abet Print laminate are ideal for schools, hospitals, offices and other public facilities. Made with integral laminate, also in class 1, these doors combine aesthetics and functionality.

Features of Technical Doors:

• Reliable Hold: Ideal for studios or professional environments.
• Aesthetic Impact: Maintains an elegant working environment.
• Durability over Time: High quality materials.

Applications:

• Health facilities
• Cellars
• Secondary garage accesses
• Laundries
• Stairwells

Safety and Security:

• Against Electric Discharges: Upon request, provision for equipotential connections with the electrical system, in compliance with the CEI 64-8 standard.

Our doors for public and community facilities are designed to combine aesthetics, safety and acoustic comfort. Contact us for more information and a personalized quote.
