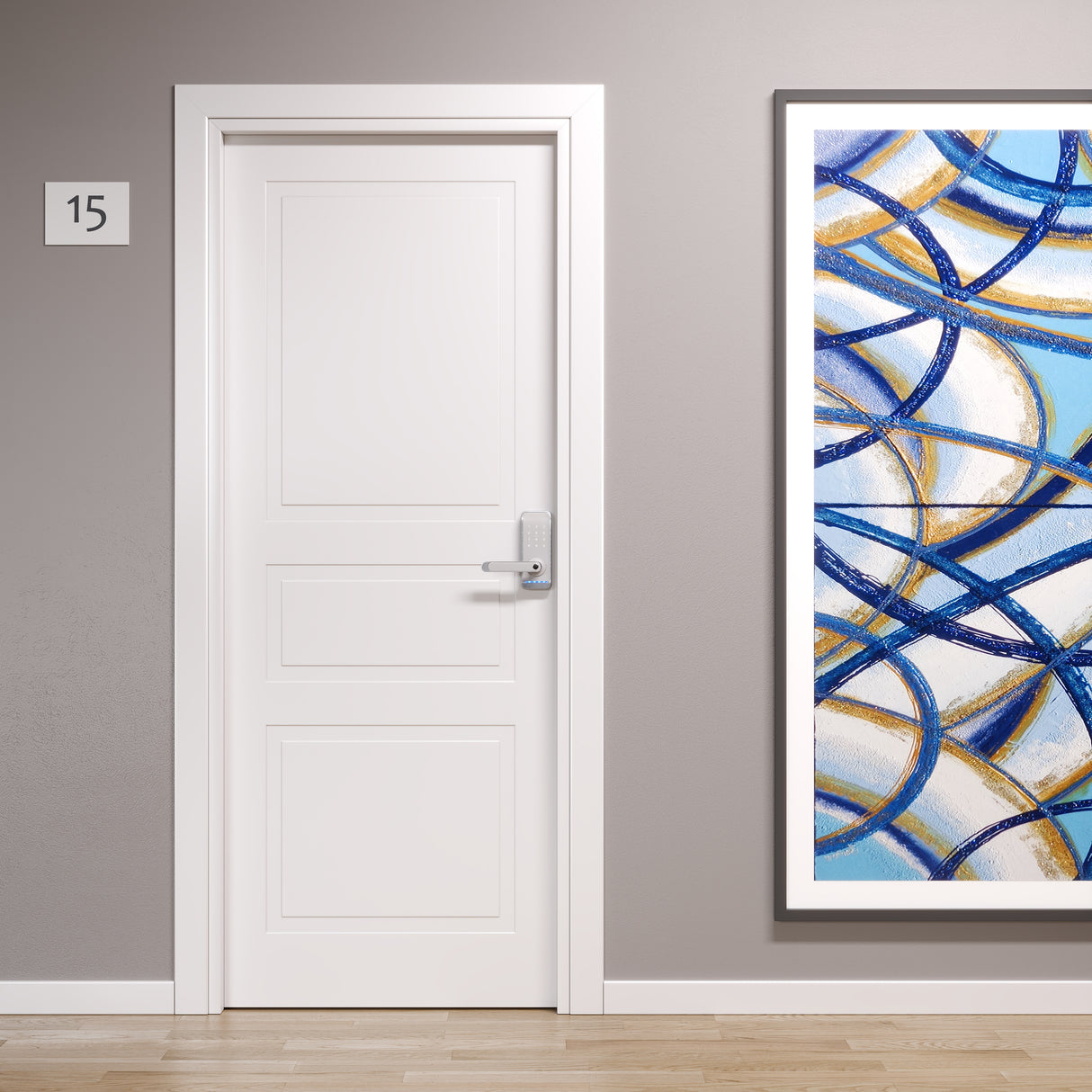

Pantographed Fire Door 2+1 Bosses EI 60

Santorini EI 60 Line: The Elegance That Protects

The Santorini EI 60 Line redefines the concept of interior doors, combining refined design, artisan quality and advanced technical performance. Perfect for those seeking security without sacrificing style, this door offers fire resistance, sound insulation and customizable finishes.

Classic and Refined Design

The pantographed workmanship gives depth and character to the surface, creating an elegant and timeless aesthetic. The ashlar design enhances the symmetry and harmony of the shapes, adapting to any environment with style and personality.

Advanced Technical Performance

• Fire Resistance (EI 60): Certified according to the UNI EN 13501-2:2023 standard, it guarantees 60 minutes of fire resistance.
• Acoustic Insulation: Sound insulation power up to 38dB , compliant with the UNI EN ISO 10140-2:2021 standard.
• Smoke Seal (Sa4): Reduces the dispersion of cold smoke, in compliance with the EN 1634-3:2004/AC:2006 standard.

High Quality Materials and Construction

• Door: Solid wood perimeter structure, mineral fibre insulated interior, MDF cladding. Total thickness: 46 mm.
• Frame and Cover: Body in solid fir, covered in 3 mm water-repellent HDF for maximum protection against humidity.
• Gaskets: Heat-expanding for hot smoke and sound-insulating on three sides.
• Concealed Hinges: Adjustable steel, tested for 200,000 cycles, with opening up to 180°.
• Lock: Yale type cylinder hole with additional options such as panic bar and badge reader.
• Mobile Threshold: Aluminum guillotine with rubber gasket for an airtight seal.

Finishes and Customization

• Water-based lacquer finish: For a smooth, bright and eco-friendly surface.
• Covering options: veneered MDF, high-intensity laminate or wood essence.
• Aesthetic customization: Engraved and pantographed designs on request.
• Custom accessories: Handles, metal details and concealed door closers.

Certifications

• Safety certifications: EI 60 classification, Sa and acoustic insulation 33dB and 38 dB, with approval issued by the Ministry of the Interior - Fire Department.

Discover the Santorini EI 60 Line and choose the perfect door to combine style, safety and innovation in your environment.

How to take measurements for the Hinged Door?

To properly measure interior doors, follow these steps. The measurements you need include the width, height, and thickness of the wall.

Steps:

1. Measure the Width:
1. Measure the width of the wall opening (wall hole) from one side to the other.
2. Measure the Height:
1. Measure the height of the wall opening from the floor to the top.
3. Measure the Wall Thickness:
1. Measure the thickness of the wall on both sides of the opening.

Measurement Conversion Table (cm):

Practical Example:

• Dimensions Door with Frame: 78 x 213.5 x 11-13.5 cm
• Wall Hole: 80 x 215 cm
• Door: 70 x 210 cm

Taking the correct measurements for interior doors is essential for a perfect installation. Follow these simple steps and use our conversion table to ensure your new interior doors fit perfectly in your space.

Choose our interior doors for a combination of quality, durability and ease of installation. Contact us for more information or a personalized quote!
